Starway Vehicle’s 40ft flatbed trailers are in high demand, especially in Africa, where they are widely exported. These trailers are available in a variety of sizes, styles and configurations to meet our customers’ unique needs. Additionally, we provide customized solutions for special requirements, ensuring flexibility and satisfaction.

The 40ft flatbed trailer is very suitable for transporting containers, steel and other heavy goods. It is especially suitable for steel mills and steel distribution centers to transport heavy objects such as steel coils and steel plates.

In order to ensure the carrying capacity of the flatbed semi-trailer, our 40ft flatbed trailer is welded and formed using an imported fully automatic tracking submerged arc welding machine. This advanced manufacturing process ensures precision and increases the durability of your trailer. Enhanced trailer’s load-bearing capacity and anti-deformation performance.

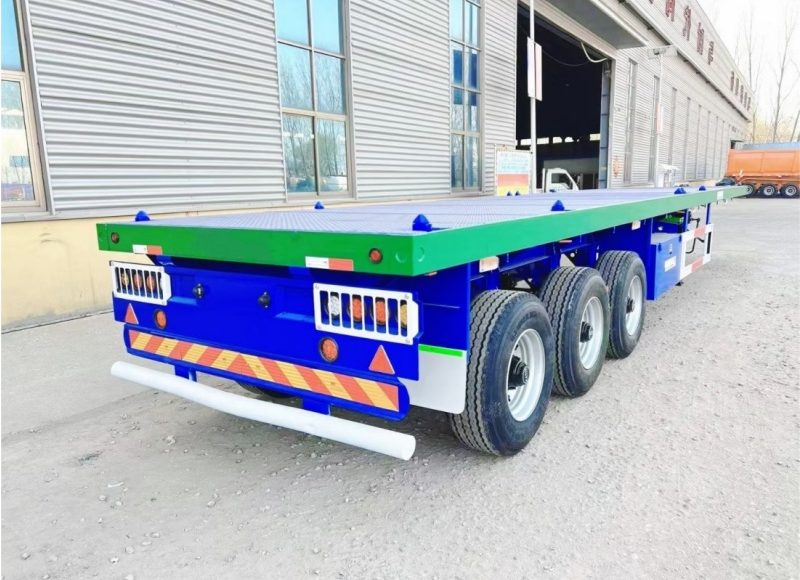

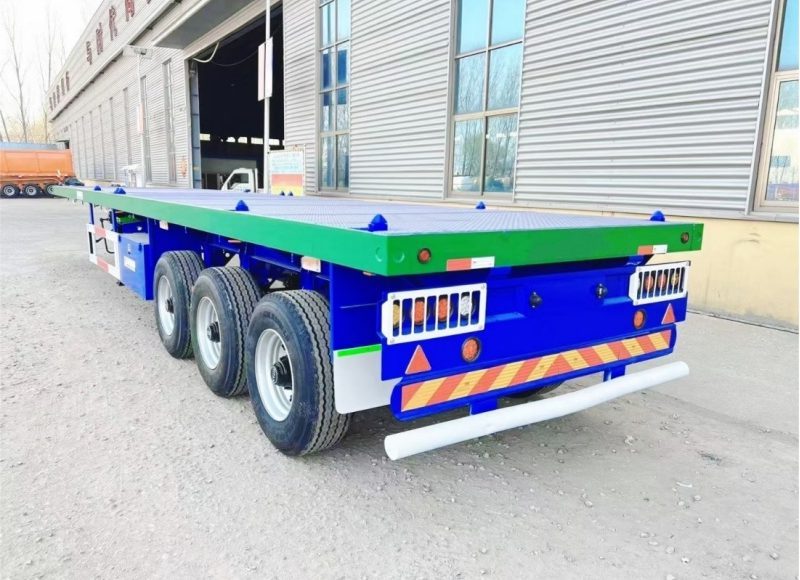

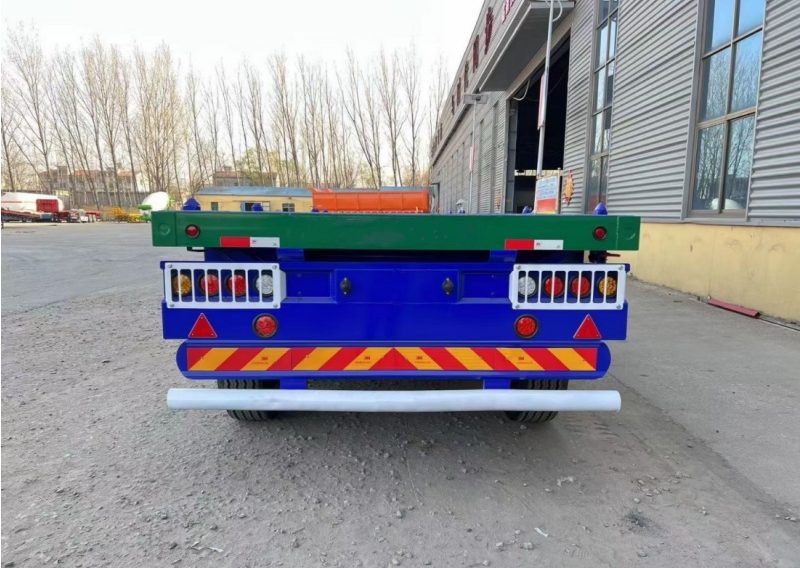

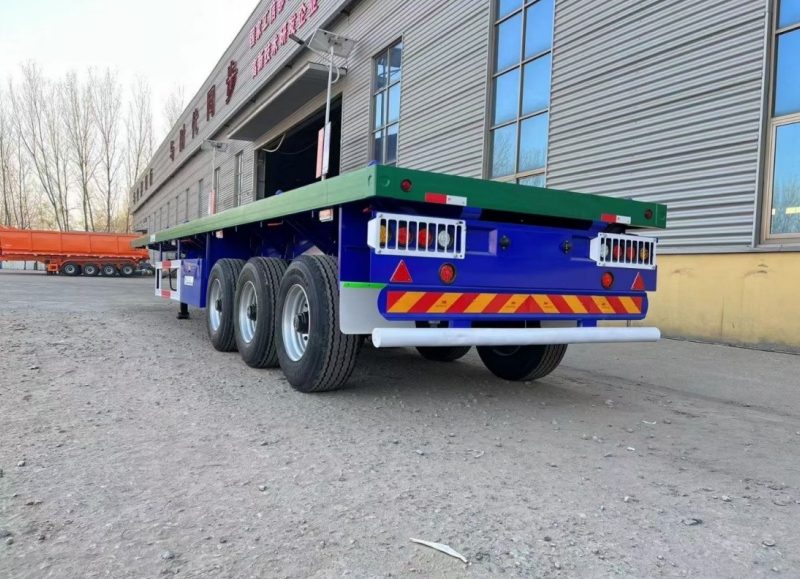

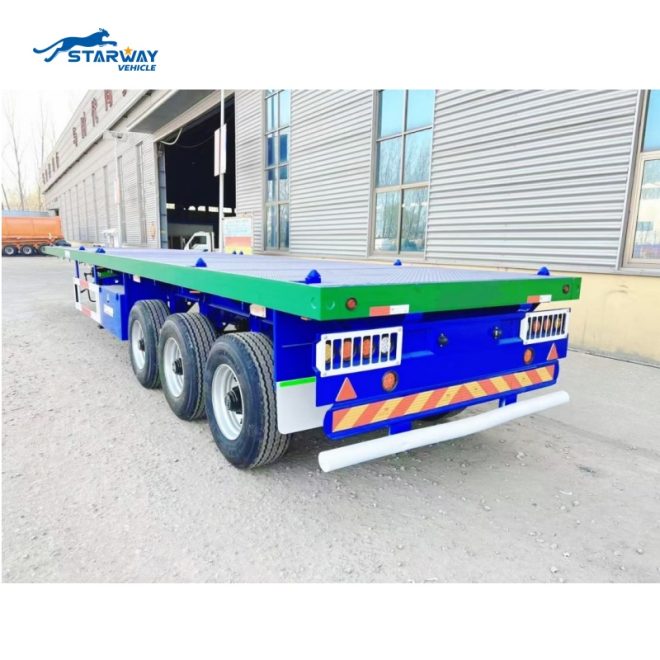

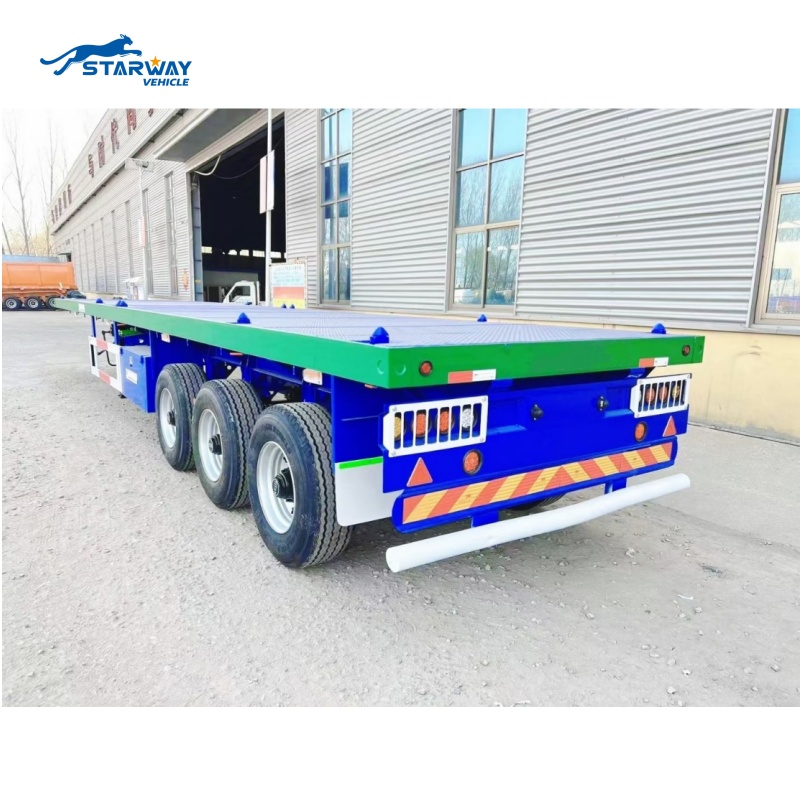

Tri-Axle 40 Ft Flatbed Semi Trailer

Tri-Axle 40 Ft Flatbed Semi Trailer

Tri-Axle 40 Ft Flatbed Semi Trailer

The Specification of STARWAY VEHICLE Flatbed Semi Trailer :

Brand ：Starway Vehicle

Loading Capacity : 30-80 Tons

Gooseneck Type : Yes

Material : Q345/T700

Platform Thickness : 3mm

Dimension : 12400*2500*1570mm (Can be designed )

Color : Per customer’s requirement

Axles : 2/3/4 Axles *13/16 Ton FUWA/BPW/Starway Vehicle/Other

Tire : 12R22.5(8/12Pcs) Linglong/Triangle/Double-Coin/Bridgestone/Other Brand

Rim : 9.00*22.5(8/12Pcs)

Leaf Spring : 90mm*13mm*10/90mm*16mm*10Pcs

King Pin : 50#(2”)/90#(3.5”)JOST/Other Brand

Landing Gear : 28 Ton Two Speed,JOST/Other Brand

Suspension : Mechanical suspension or air suspension(brand optional)

Leaf spring : Leaf spring 10pcs*90*13mm or air bag

Landing gear : JOST or other brand two-speed, landing gear 28T

Electrical System : 24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame

Braking System : Dual line pneumatic brake, SAE hose and connector,without ABS

Accessories : Toolbox*1; spare tire carrier*2  ,    12 pcs container twist locking
