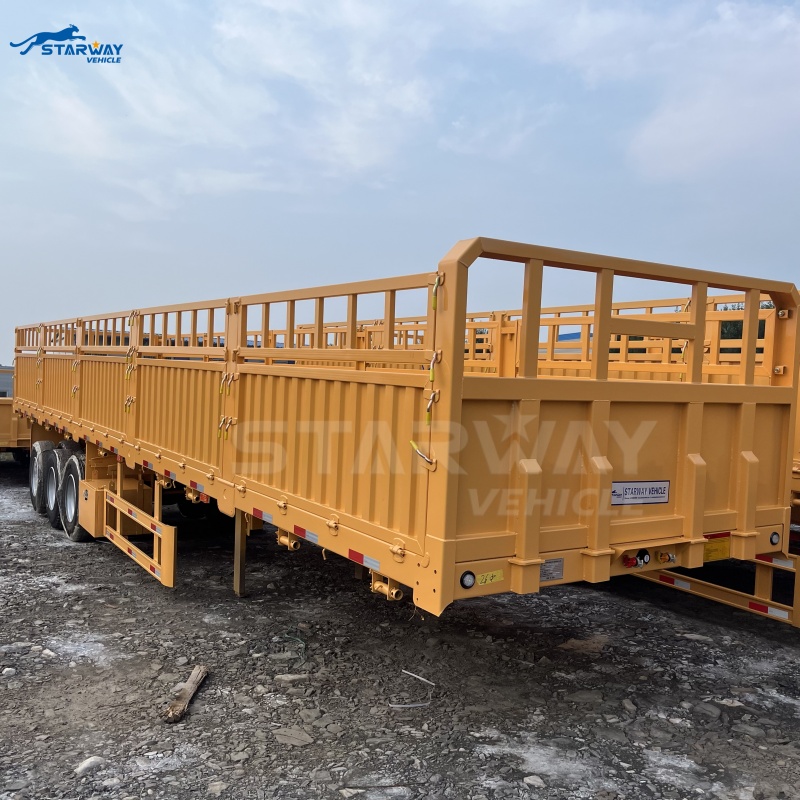

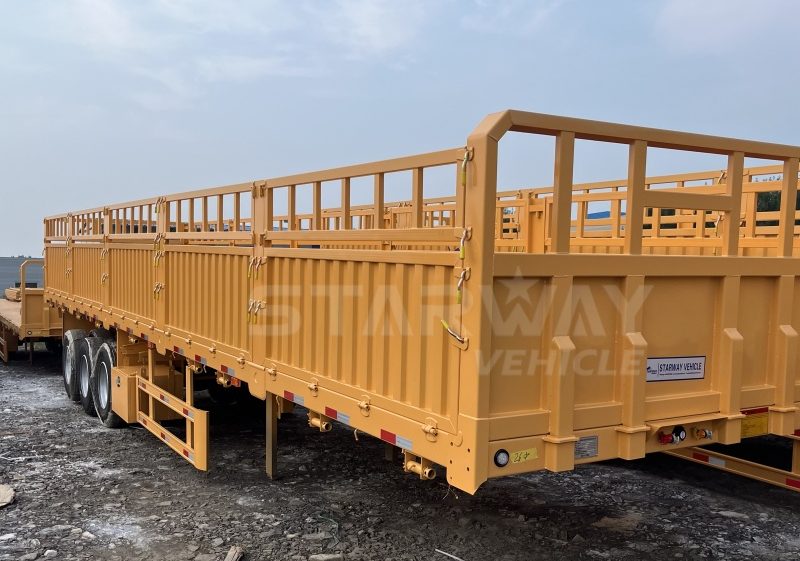

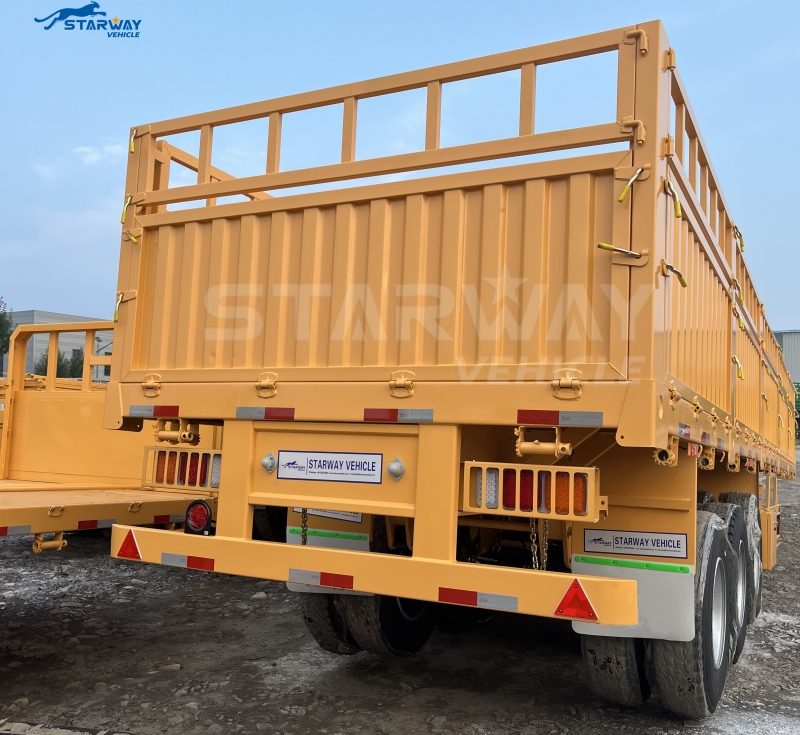

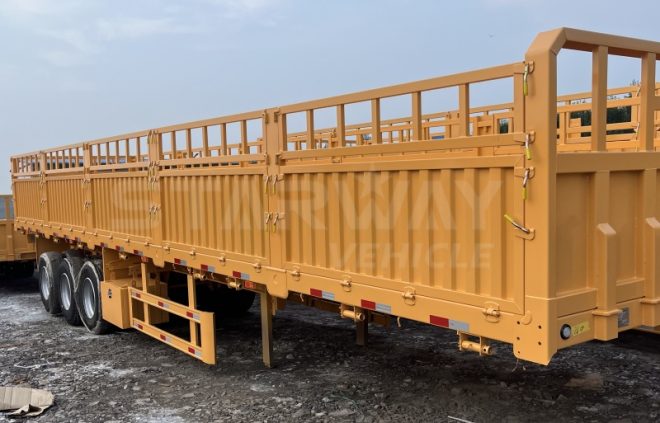

Starway Vehicle’s three-axle sidewall semi-trailer is one of our company’s cost-effective transportation models. With its large-capacity cargo box design, it maximizes the single transportation volume and reduces transportation costs and labor costs.

At the same time, the sturdy and durable structure and easy maintenance characteristics extend the service life of the vehicle and save maintenance costs. In addition, the user-friendly operating interface and comfortable driving environment provide drivers with a better working experience and improve transportation efficiency.

2Axles 40Tons Sidewall Semi Trailer

2Axles 40Tons Sidewall Semi Trailer

2Axles 40Tons Sidewall Semi Trailer

The Specification of starway vehicle sidewall semi trailer :

Dimension :13000x2500x1580mm (Customized )

Sidewall Height :600mm

Main beam:Material: Q345B; “H” beam height: 500mm; Top/middle/bottom: 12/8/14(mm)

Through beam:#10 channel steel

Side beam :#16 channel steel

Loading capacity :60 T

Paint: Powder spraying and coating

Color:Per customer’s requirement

Axle:BPW/Fuwa/Starway/ 13 ton x 3

Tire: Triangle 12R22.5x 12 + one spare tyre

Rim:900*22.5 *13

Suspension:Mechanical suspension or air suspension(brand optional)

Leaf spring:Leaf spring 10pcs*90*13mm or air bag

Landing gear:JOST or other brand two-speed, landing gear 28T

Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame

Braking System :Dual line pneumatic brake, SAE hose and connector,with WABCO ABS

Accessories:Toolbox*1; spare tire carrier*2  ,  12 pcs container twist locking
