The 40000L tanker trailer is specially designed for the safe and efficient transportation of crude oil and is built using advanced technology and high-quality materials. This trailer is designed to operate reliably in a variety of conditions, ensuring your cargo arrives safely and on time.

This trailer is equipped with a variety of safety features, such as a pressure-controlled safety valve, anti-static grounding to prevent static electricity accumulation, and an anti-overflow system to minimize leakage during loading and unloading, ensuring maximum safety during transportation.

The tanker itself is made of high-strength materials and is designed to withstand the rigors of long-distance travel. Reinforced components enhance the stability and integrity of the trailer, ensuring safety even on challenging roads or in extreme conditions.

40,000L tanker trailers can also be customized to meet specific transportation requirements, including insulating temperature-sensitive cargo or adding a hydraulic unloading system for faster, more efficient unloading. This combination of safety, durability and flexibility makes it the perfect choice for transporting crude oil over short and long distances.

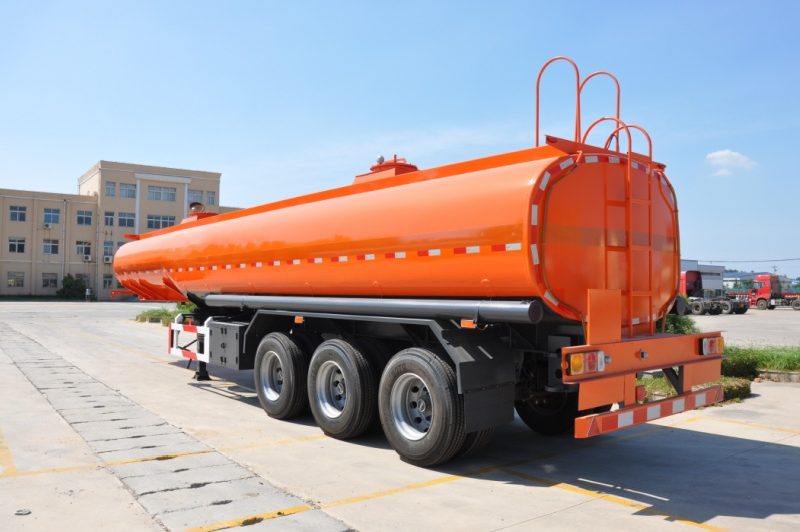

Starway Vehicle 40000 L Diesel Oil Tanker Trailer

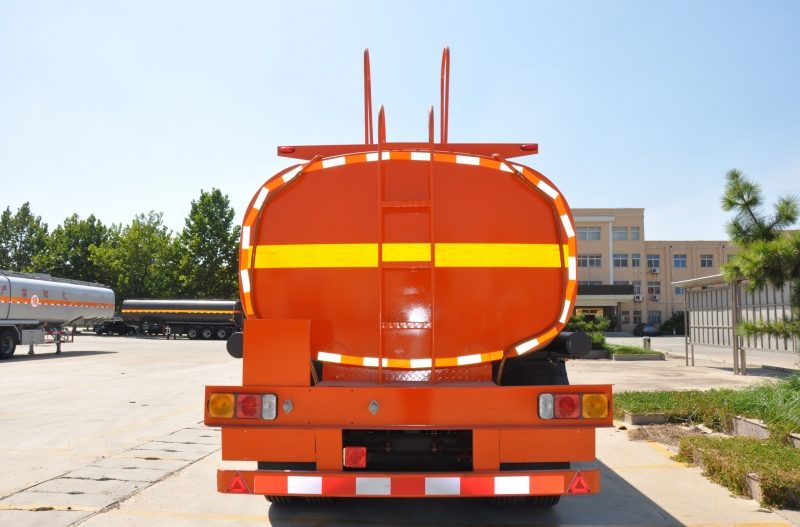

Starway Vehicle 40000 L Diesel Oil Tanker Trailer

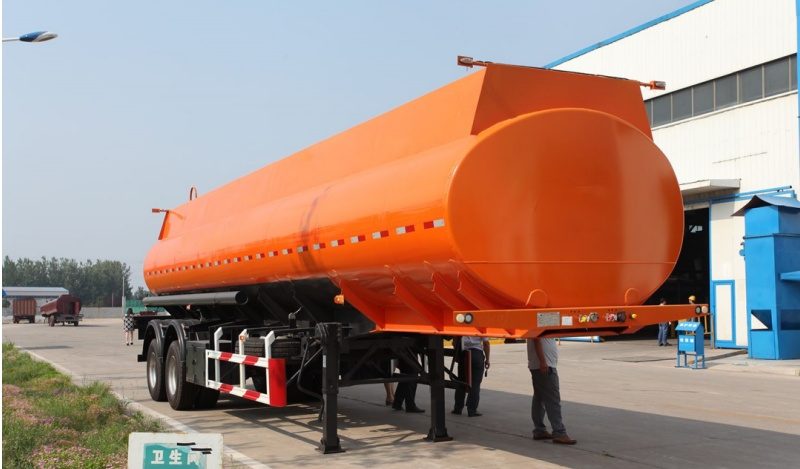

Starway Vehicle 40000 L Diesel Oil Tanker Trailer

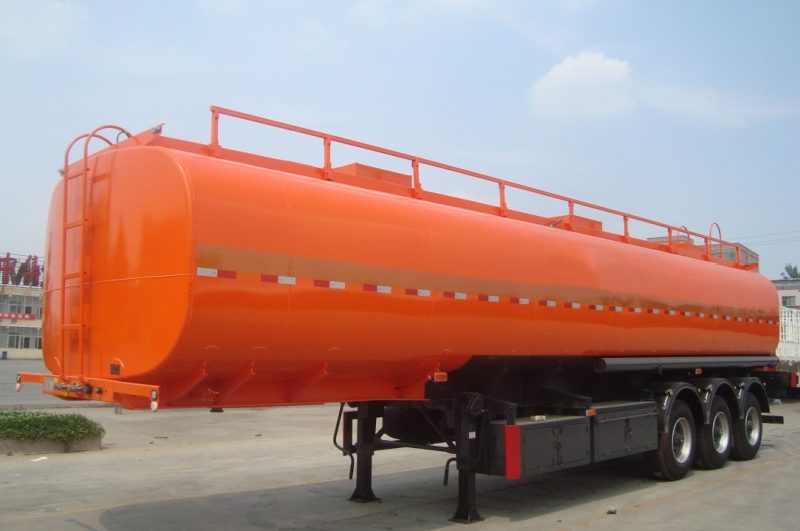

Starway Vehicle 40000 L Diesel Oil Tanker Trailer

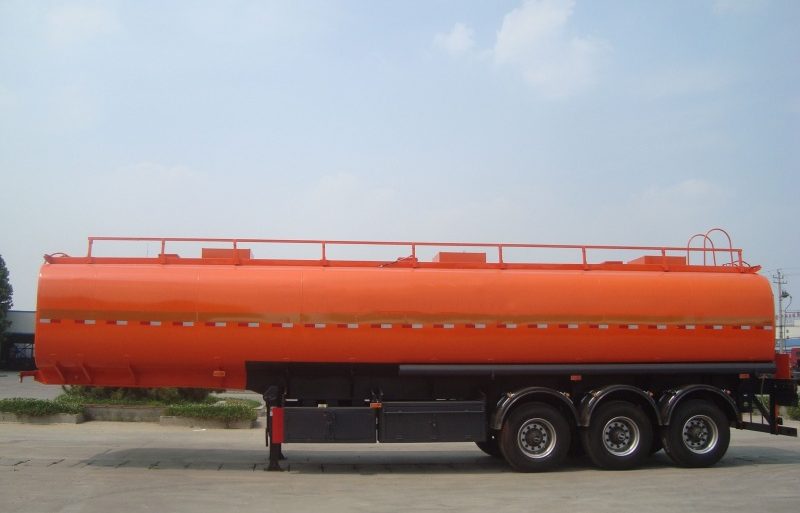

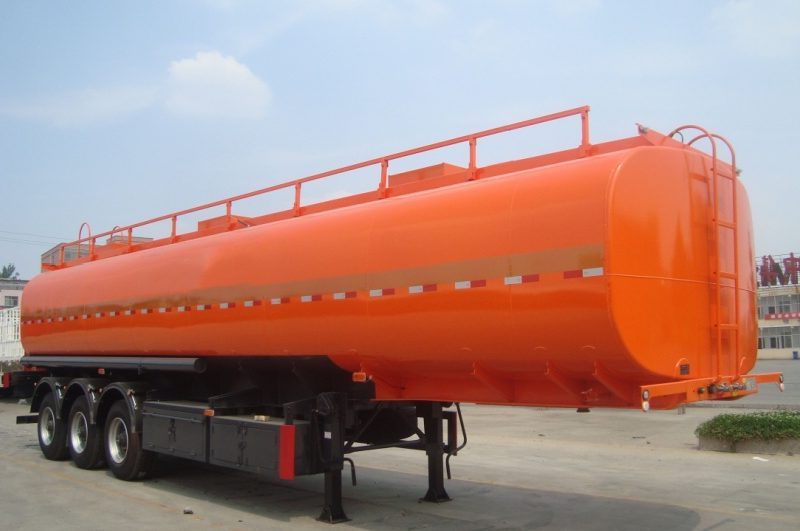

Starway Vehicle 40000 L Diesel Oil Tanker Trailer

The Specification of STARWAY VEHICLE fuel tanker trailer :

Material : Carbon Steel/Aluminum/Stainless Steel

Tank Thickness : 5mm

Dish End Thickness : 6mm

Buffle Thickness : 4mm

Volume of Tanker : 20-55 CBM Customized

Axle : 2/3/4 Axle

Compartment : 1 to 9

Dimension : 13000*2500*3800mm (Standard Dimensions, Customizable )

Tank Shape : D Style/Round Style

Lifted Axle : Available

Manhole : Two Pcs,Aluminum,Anti-Explosion

Discharge Valve : 2*3 inch

Axles : 2/3/4 Axles *13/16/20 Ton,FUWA/BPW/Starway Vehicle/Other Brand

Tire : 12R22.5/11.00R20,8/12/16Pcs,Linglong/Triangle/Double-Coin/Bridgestone/Other

Rim : 9.00*22.5/8.0,8/12/16Pcs,Steel/Aluminum

Leaf Spring : 90mm*13mm*10

Suspension System : Mechanical / Air Suspension

King Pin : #50(2”)/#90(3.5”),JOST/Other Brand

Landing Gear ：28 tons, two-speed, JOST/other brands

Tool Box : Steel/Aluminum

Extinguisher : 2Sets

Paint : Electrophoretic paint for enhanced rust and corrosion resistance

Other Customizable Options : Rims, ABS, LED lights, reflective strips, etc.
