The Starway Vehicle 45-foot three-axle gooseneck frame trailer is a very practical and economical option for transporting containers. With its sturdy design and durable construction, this trailer is well suited to meet the requirements of heavy-duty logistics. Its gooseneck structure provides additional stability, making it efficient in securing and transporting containers.

This trailer is equipped with a special chassis to ensure smooth loading and unloading of containers, reducing operating time and effort. This design improves the efficiency of logistics operations and plays an indispensable role in ports, warehouses, or long-distance transportation.

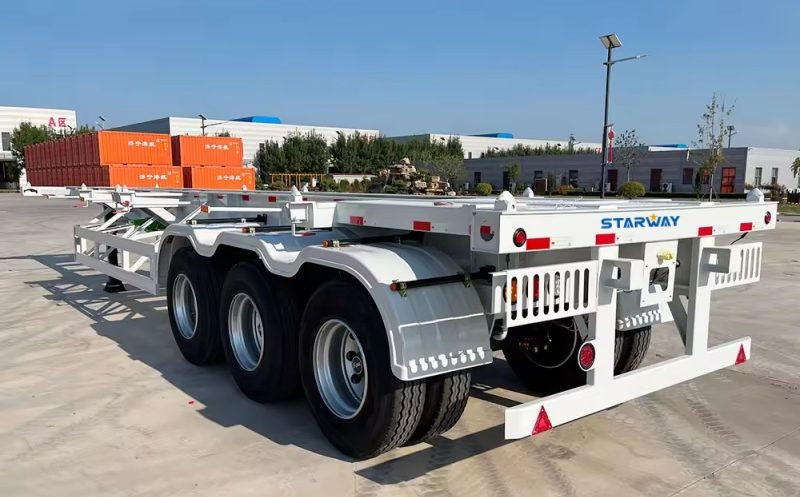

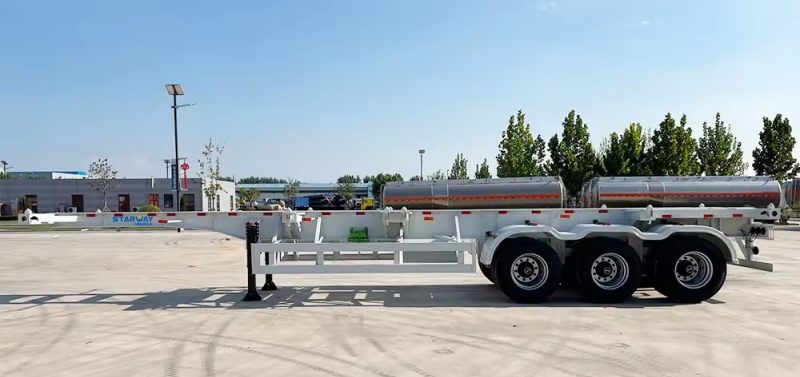

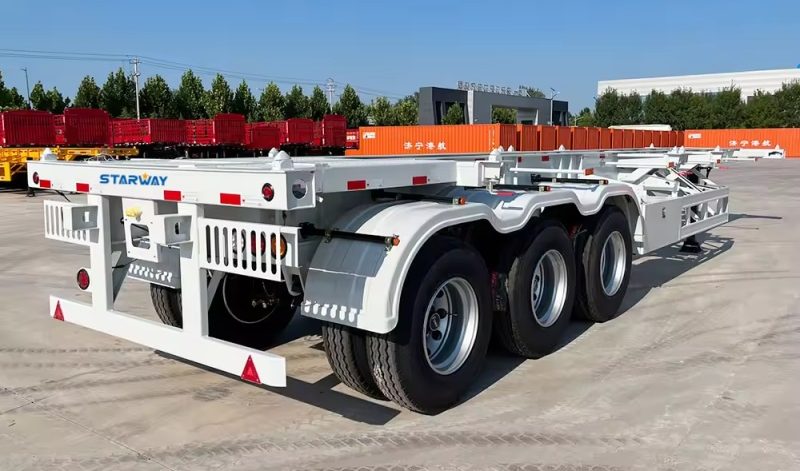

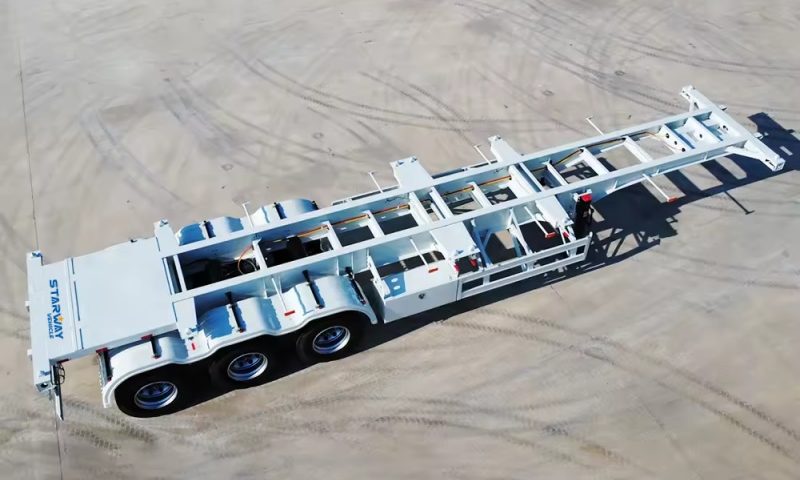

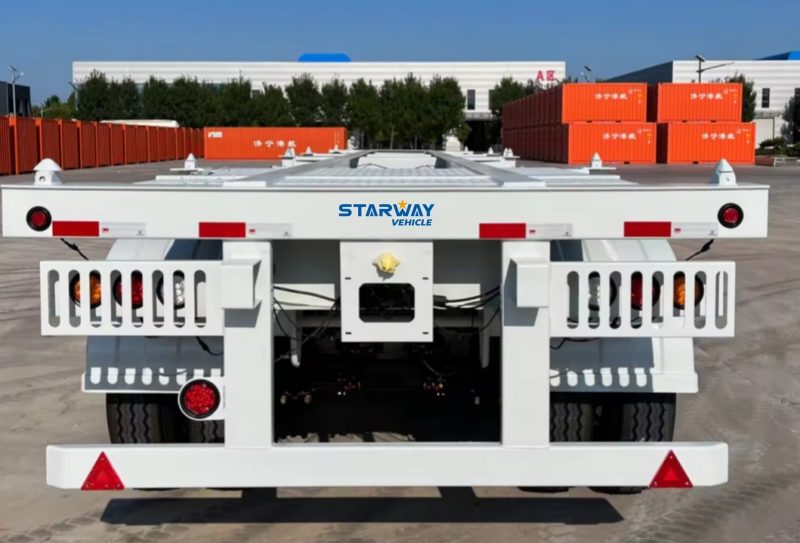

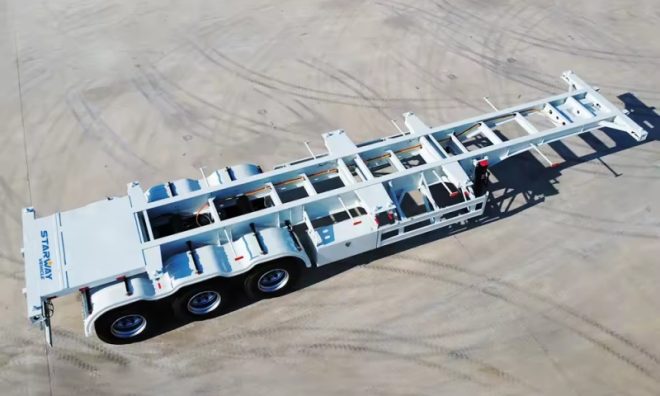

45Ft 3 Axles Skeleton Semi Trailer

45Ft 3 Axles Skeleton Semi Trailer

45Ft 3 Axles Skeleton Semi Trailer

45Ft 3 Axles Skeleton Semi Trailer

The Specifications of STARWAY VEHICLE skeleton semi trailer :

Brand : Starway Vehicle

Loading Capacity : 30-80 Tons

Type : Gooseneck or Tandem

Main Beam Material : Q345/T700

Dimension : 12400*2480*1580mm(Customized)

Axle : 2/3 Axles*13 Ton FUWA/BPW/Starway Vehicle/Other

Tire : 12R22.5(12/16Pcs）Linglong/Triangle/Double-Coin/Bridgestone

Rim : 9.0*22.5(12/16Pcs)Steel/Aluminum

Leaf Spring : 90mm*13mm*10Pcs/90mm*16mm*10Pcs

King Pin : #50(2”)/#90(3.5”) JOST/Other

Landing Gear : 28Ton Two Speed JOST/Other

Twist Lock : 12 Sets

Painting : Electrophpresis Painting
