Starway Vehicle’s flatbed container semi-trailer is a versatile and essential piece of equipment designed for medium to long distance transportation. It is particularly effective for transporting containers, and the 40-foot flatbed semi-trailer is capable of transporting one 40-foot container or two 20-foot containers. In addition to container transportation, this trailer is also ideal for transporting large, heavy cargo such as building materials, lumber, and other oversized cargo.

The frame of the semi-trailer adopts a solid beam structure with straight beams or gooseneck longitudinal beams. The web height varies from 400mm to 550mm, providing the necessary strength and stability. The cross beams are welded by automatic submerged arc welding, which is durable and ensures precise and safe connections. The frame is then shot blasted to improve its wear resistance and extend its service life. To form a solid and reliable structure.

In order to improve the strength and load-bearing capacity of the flatbed trailer, we use Q345 or T700 steel as the frame structure. These materials ensure that the flatbed trailer can withstand heavy loads and demanding conditions. Every trailer is custom designed by our engineers to meet the customer’s specific requirements.

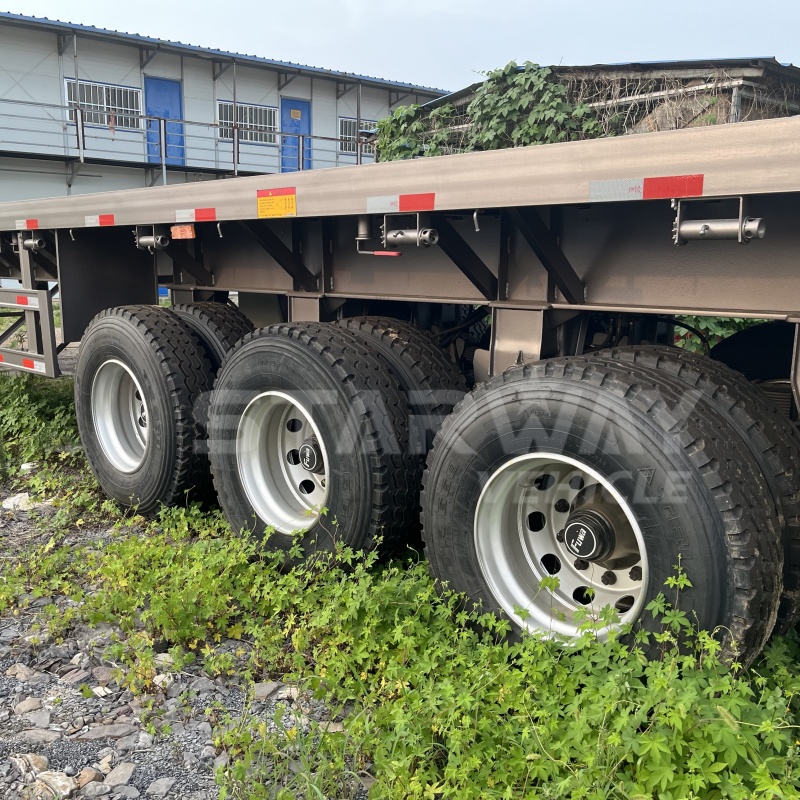

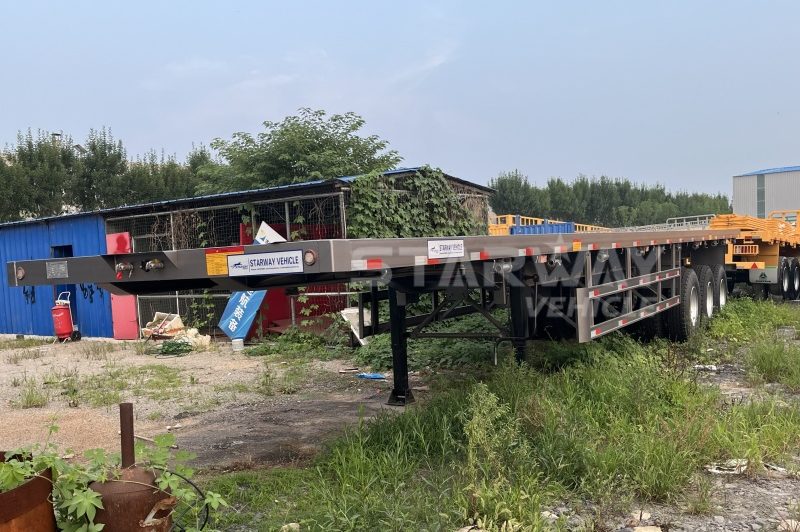

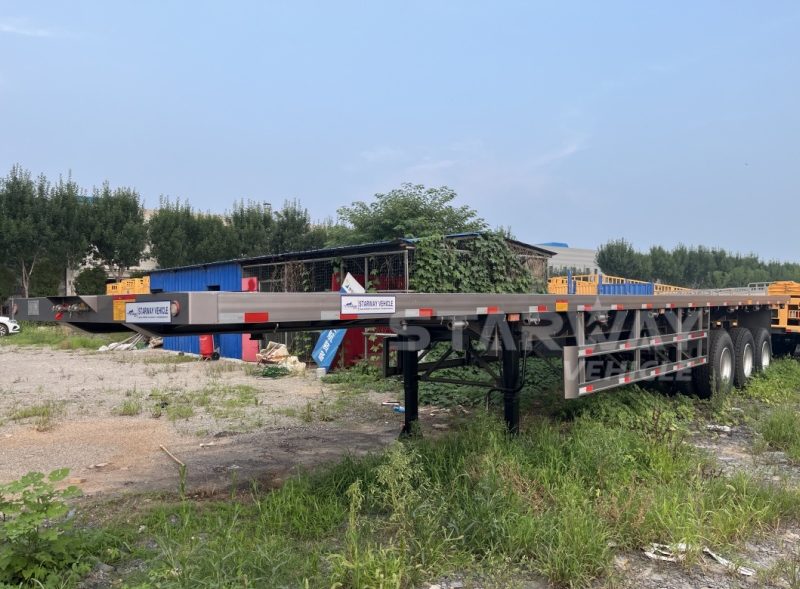

3 Axle Container Flatbed Semi Trailer On Sale

3 Axle Container Flatbed Semi Trailer On Sale

3 Axle Container Flatbed Semi Trailer On Sale

The Specification of STARWAY VEHICLE Flatbed Semi Trailer :

Brand ：Starway Vehicle

Loading Capacity : 30-80 Tons

Gooseneck Type : Yes

Material : Q345/T700

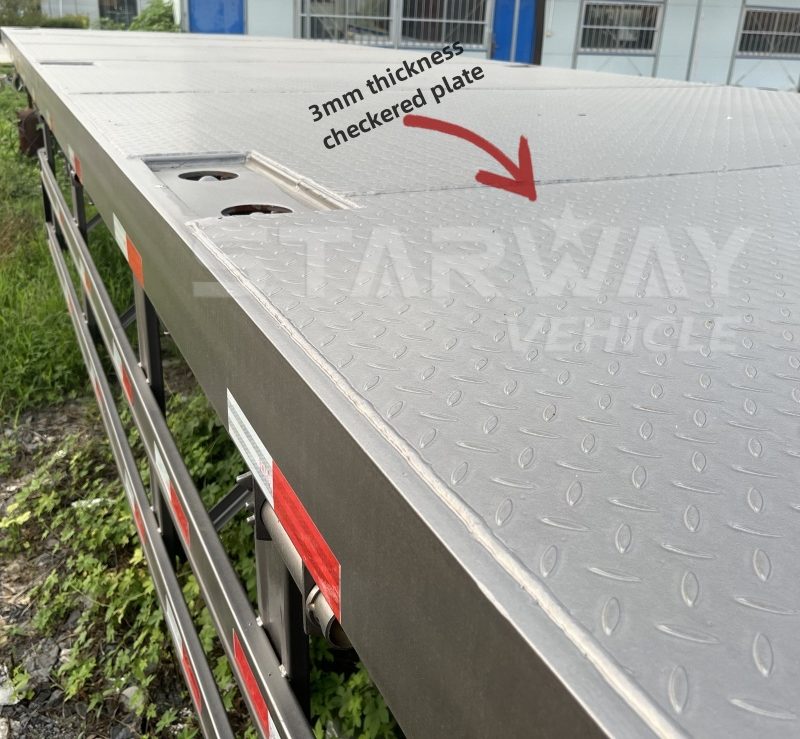

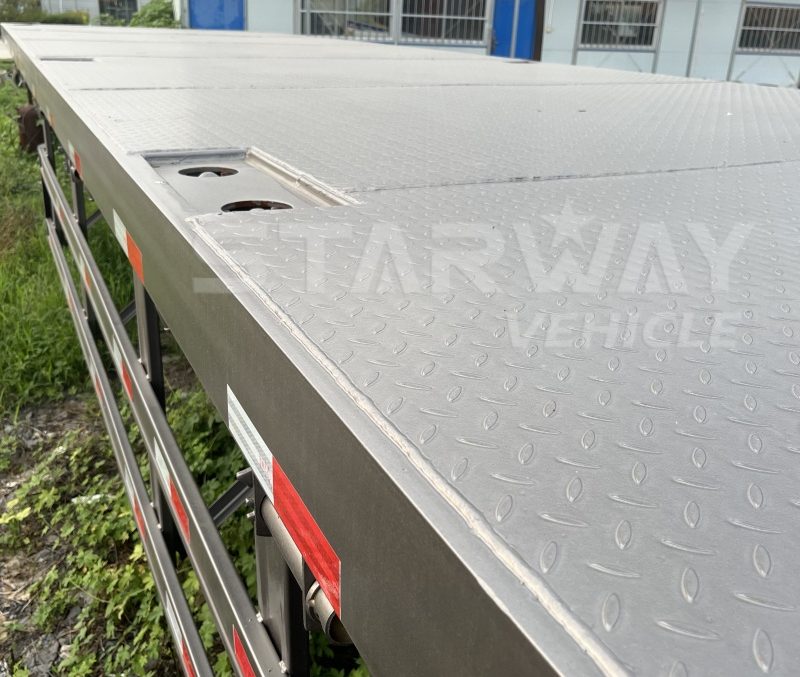

Platform Thickness : 3mm

Dimension : 12400*2500*1570mm (Can be designed )

Color : Per customer’s requirement

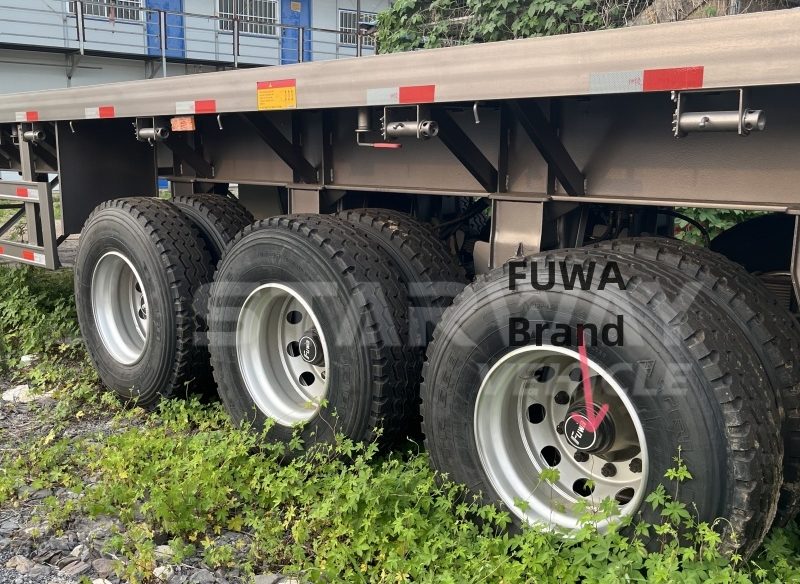

Axles : 2/3/4 Axles *13/16 Ton FUWA/BPW/Starway Vehicle/Other

Tire : 12R22.5(8/12Pcs) Linglong/Triangle/Double-Coin/Bridgestone/Other Brand

Rim : 9.00*22.5(8/12Pcs)

Leaf Spring : 90mm*13mm*10/90mm*16mm*10Pcs

King Pin : 50#(2”)/90#(3.5”)JOST/Other Brand

Landing Gear : 28 Ton Two Speed,JOST/Other Brand

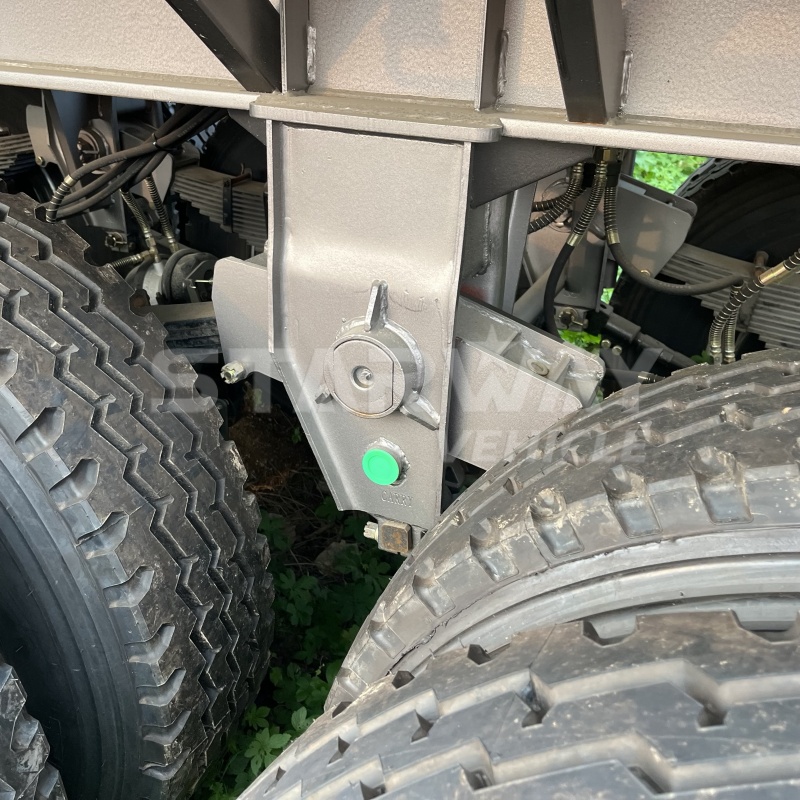

Suspension : Mechanical suspension or air suspension(brand optional)

Leaf spring : Leaf spring 10pcs*90*13mm or air bag

Landing gear : JOST or other brand two-speed, landing gear 28T

Electrical System : 24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame

Braking System : Dual line pneumatic brake, SAE hose and connector,without ABS

Accessories : Toolbox*1; spare tire carrier*2  ,    12 pcs container twist locking
